Rossi Assembly Instructions Video

Step by Step Assembly

assembly1

1.

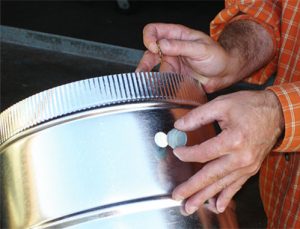

Drill 3/4" holes on each side of your sheet metal sleeve and click the Snap-In Bushings into place
assembly2

2.

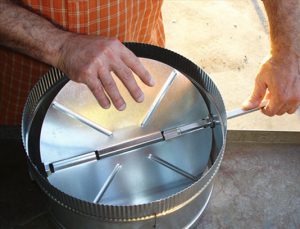

Holding the blade in position, pass the 3/8" square bar through the bushings and channel in the blade
assembly3

3.

Spotweld or rivet the regulator in place, making sure the handle and blade are in corresponding positions
assembly4

4.

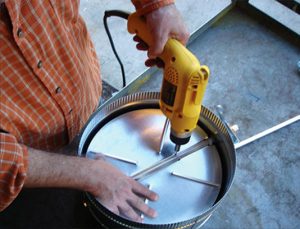

Center the blade and secure the system with a self-drilling screw.
